ZAP-X Gyroscopic Radiosurgery

Surgical Robotics.
Putting Patients First.

Developed exclusively for the streamlined treatment of brain tumors, lesions, and other conditions of the head and neck, ZAP-X® Gyroscopic Radiosurgery® platform redefines the future of radiosurgery and aspires to set new standards in SRS delivery.

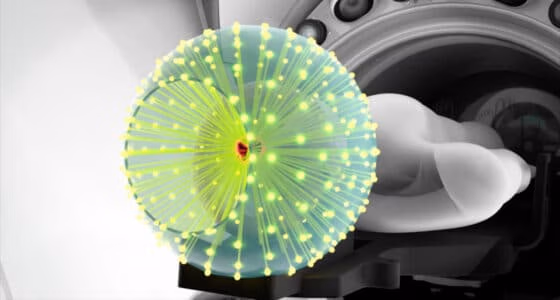

Exquisite 3D Dose Gradient

Minimizing 3D Dose Gradient

To simultaneously optimize dose fall-off and conformality, ZAP-X’s dual independent gantries allow for an unparalleled spherical workspace and simple delivery of hundreds of uniquely angled non-coplanar beams – not as an exception, but as routine clinical practice.

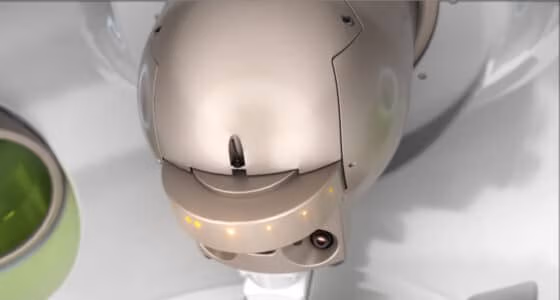

Low Collimation Leakage

Reducing Radiation Leakage

Utilizing a tungsten-shielded circular collimation system, ZAP-X lowers radiation leakage to less than 0.002% of the primary beam. Compared to the 2.50% maximum potential leakage of multi-purpose platforms, ZAP-X aims to strictly limit healthy brain exposure and lower the risk of inducing patient neurocognitive deficit.

Minimal Radiation Scatter

Decreasing Radiation Scatter

Unlike the high-scatter 6-10MV beam energies commonplace with multi-purpose radiation delivery platforms, ZAP-X is tailor-made for cranial SRS with a 3MV beam designed to significantly reduce non-therapeutic dose to adjacent critical structures.

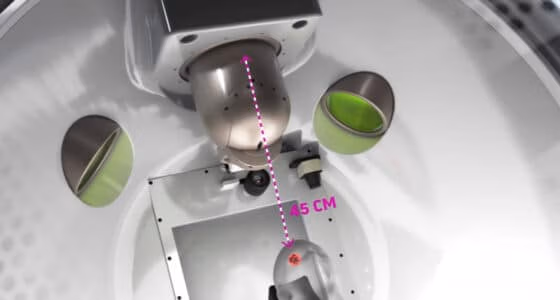

Extremely Sharp Penumbra

Sharpening Beam Penumbra

The SRS-only design of ZAP-X allows for an unprecedented linac source-axis distance (SAD) of 45 cm – reducing beam penumbra by ~50% from the 100 cm SAD typical of full-body radiation platforms. The potential benefit: less dose to the eyes, optic nerves, brain stem, and other organs at-risk.

Creating Unique Opportunities

For the first time ever, ZAP-X presents the ideal platform to cost-effectively reach more patients in more places and effectively build an acclaimed clinical brand among both referring physicians and patients.

Opportunity

Creative Department Expansions

ZAP-X’s vault-free design enables the simple conversion of lobby space, meeting rooms, break rooms, etc. to visually showcase and position your center as an SRS center-of-excellence.

Opportunity

Suburban and Rural Community Hospitals

ZAP-X enables the possible migration of SRS beyond the urban hospital and brings world-class radiosurgery to communities which often previously lacked access.

Opportunity

Novel Outpatient Settings

Enhance patient convenience with ZAP-X and reach underserved patient populations via lower-cost non-hospital and outpatient locations.

Opportunity

KOL Thought Leadership

Representing the latest, most modern frontier in radiosurgery, ZAP-X provides sites with plentiful media interest and offers clinicians significant opportunities to present, publish, and demonstrate SRS thought leadership.

Lowering
Total Cost of Ownership

Removing the financial constraints that have historically concentrated world-class radiosurgery primarily among the well-funded urban academic hospital, the novel innovations of ZAP-X expand SRS access and introduce new benchmarks in cost-efficient, high-quality care.

As the first and only vault-free SRS delivery system, ZAP-X eliminates the requirement of 2-3M pounds of high-density concrete and steel for shielded radiation bunker construction, and ~$1M+ USD in infrastructure expense.

Utilizing a modern 1500MU/min linear accelerator, ZAP-X eliminates the recurring ~$1M USD cost for live radioactive source replacements and removes the related overhead expense for arduous regulatory licensing and source security.

ZAP-X Platform
Components

Interactive map of ZAP-X Gyroscopic Radiosurgery platform components
Combined Shape Primary Axial Gantry Pivot 1 of 11 Combined Shape

Secondary Independent Oblique Gantry Pivot

2 of 11
Combined Shape KV Imaging Detector 3 of 11 Combined Shape

Shielded Treatment Sphere

4 of 11
Combined Shape

Shielded Rotary Shell

5 of 11
Combined Shape

Shielded Vertical Door

6 of 11
Combined Shape

Real-Time Dosimetry Error Mitigation System

7 of 11
Combined Shape KV Imaging Tube 8 of 11 Combined Shape

Patient Treatment Table

9 of 11
Combined Shape

Beam Collimation System

10 of 11
Combined Shape

Linear Accelerator (LINAC)

11 of 11

Clinical Resources

The ZAP-X® Gyroscopic Radiosurgery® platform was FDA cleared in 2017 and began first patient treatments in 2019. Since its inception various peer-reviewed, open-access publications have documented the unique technical details of the ZAP-X platform.
Precision radiosurgery of the past often required a trade-off between treatment quality and treatment time. With ZAP-X gyroscopic radiosurgery, clinicians and their patients receive the optimal balance of both.

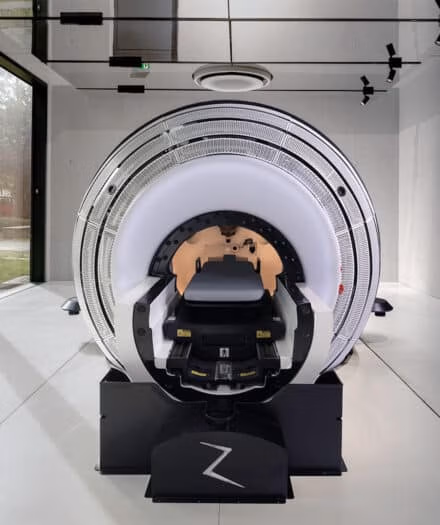

View into ZAP-X looking through open treatment door to inside

Meet ZAP-X

Built for radiosugery. Built for the brain.

Icon/video-play Play Video about ZAP-X system seen with console in a stylized black room

Clinician Testimonial

Stylized quotation mark
Neurosurgery of the future will be more and more technology-based. The ZAP-X technology, as it is dedicated for brain treatments, will play a big role here. It will change the future algorithms for neuro treatments in general, because it is an easy and effective tool …
Prof. Dr. Med. Alexander Muacevic
European Radiosurgery Center (ERC) Munich, Germany
Interview with Prof. Dr. Med. Alexander Muacevic
Icon/video-play Play Video about Interview with Prof. Dr. Med. Alexander Muacevic
See for Yourself.
Let us show you how ZAP-X can treat more patients in more places. Speak to a representative today.
European Radiosurgery Center
Munich, Germany
